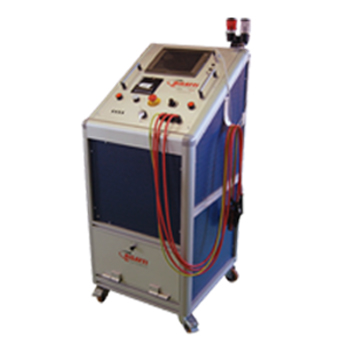

1.6.4 – E63/A Dielectric strength tester for elevated voltages

Product Description


Dielectric strength tester with all adjustable parameters, for elevated voltages and powers.


All fields, where this test is requested. Production – Reparations – Technical service – Workshop


    • Test voltage up to 60 KV (others under request)
    • Maximum current up to 1 A (according to the test voltage)
    • Timer max 100 sec
    • Management through PLC with colour digital visualiser, for all values, on 4″ display with touch-screen
    • Voltage application with the use of a static relay to avoid extra voltages


Among the several options, which allow a wide customisation, we underline:

    • WEB SERVER module with DLL for data transmission to external PC
    • Motorised voltage converter for current stabilisation and for programmable voltage loading and unloading ramp
    • 40-column printer for detected values
    • Separation of the active and reactive current component
