Product Description

FUNCTION:

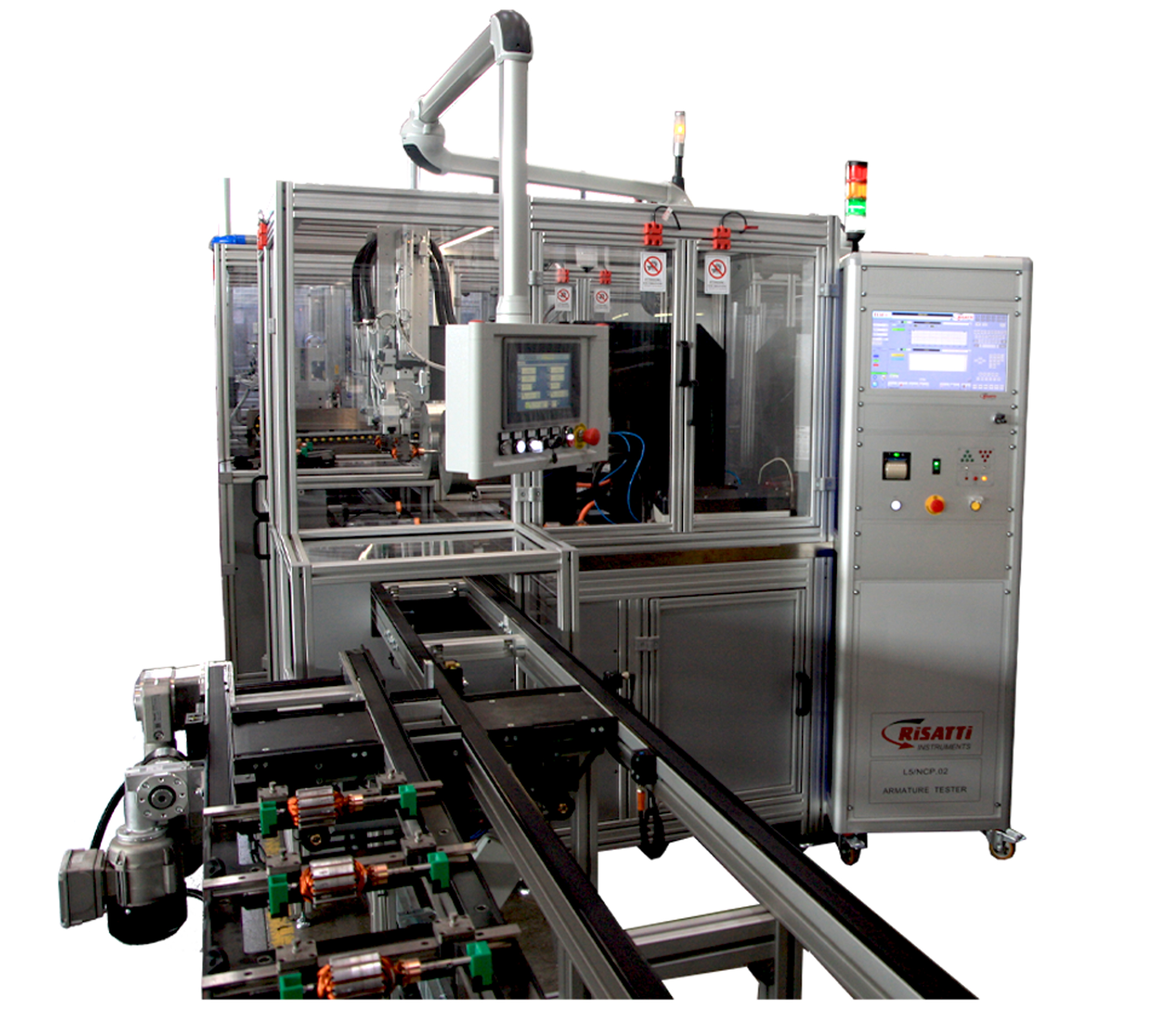

Armatures tester on production lines

MAIN FEATURES:

• Static test of the rotor using specific contact tools, interchangeable “daisy” pneumatic type
• Possible automatic loading and unloading using a manipulator
• Cycle time: about 0,4 sec. per blade
• Possibility of testing double insulation armatures

STANDARD TESTS:

• Ohmic resistance
• Welding resistance
• Dielectric strength
• SURGE on single coils or groups, according time needs

OPTIONS:

• Forty-two column printer
• Possibility of 1 or 2 alternated workplaces
