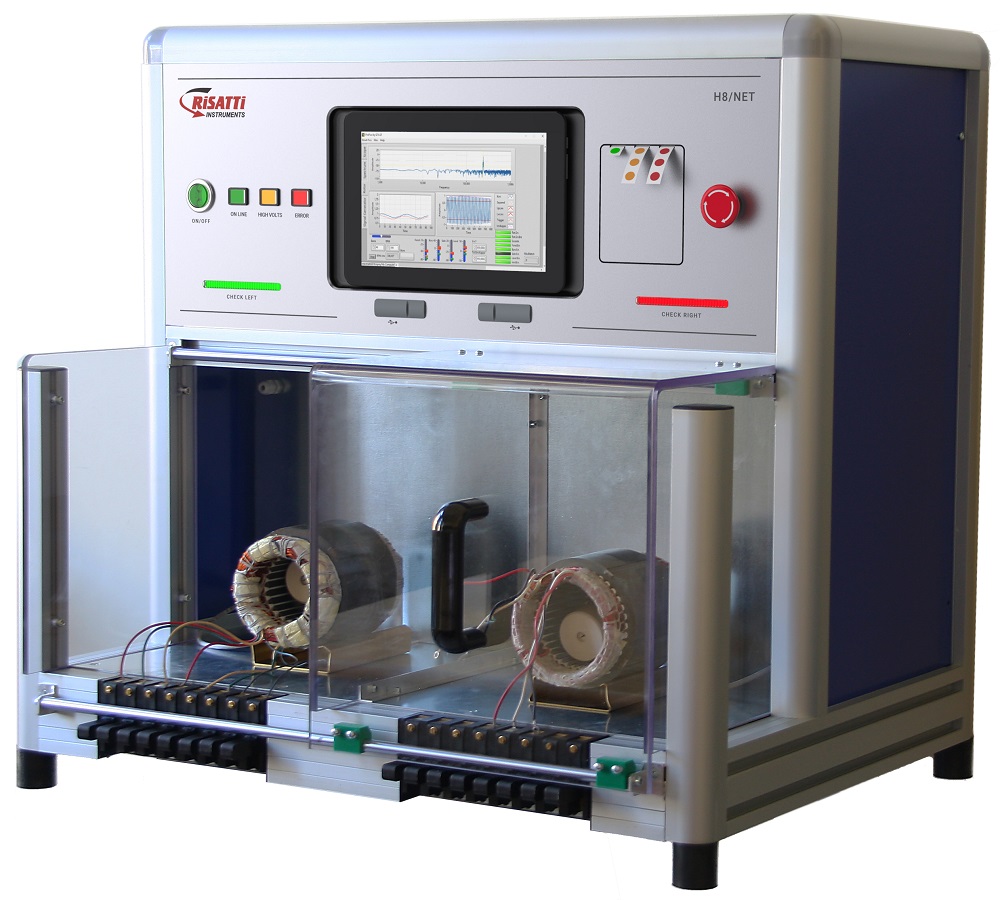

Product Description

FUNCTION:

This version aims at containing costs.

Test of:

• Motor stators with 8 standard terminals, including thermal protector
• Alternators, coils and windings

USE:

Medium and big production volumes, also very diverse. Possibility to match automatic mechanical systems or production lines.

MAIN FEATURES:

Standard version with maximum functionality and ergonometry of the workplace. Contained burdens. Front terminal boards for easy use. Configurator that allows to program any type of winding. Double alternated workplace, max dimensions: 250 x 250 x 250mm.

STANDARD TESTS:

• Ohmic resistance
• Insulation resistance: 500 Vdc, 500Mohm
• Dielectric strength, max voltage 3.000 V.ac
• SURGE, max voltage 3.000 V.
• Rotation sense

OPTIONS:

• Detection of partial discharge
• Printer
• Supporting rack
