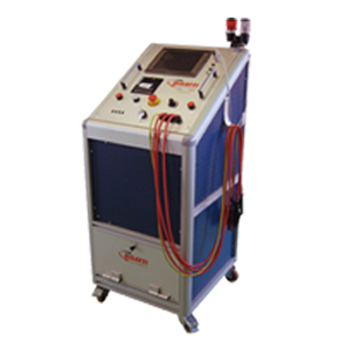

2.2.7 – E63/A Dielectric strength tester for elevated voltages

Product Description

FUNCTION:

Dielectric strength tester with all adjustable parameters, for elevated voltages and powers.

APPLICATION:

All fields, where this test is requested. Production – Reparations – Technical service – Workshop

MAIN FEATURES:

    • Test voltage up to 50 KV (others under request)
    • Maximum current up to 1 A (according to the test voltage)
    • Timer max 100 sec
    • Management with the use of PLC with colour digital visualiser for all values, on 4″ display with touch-screen
    • Voltage application with the use of static relay to avoid extra voltages

OPTIONS:

Among the several options that allow a wide customisation, we underline:

    • WEB SERVER module with DLL for data transmission to external PC
    • Motorised voltage converter for current stabilisation and for programmable voltage loading and unloading ramp
    • 40-column printer for detected values
    • Separation of the active and reactive current component
