Product Description

FUNCTION:

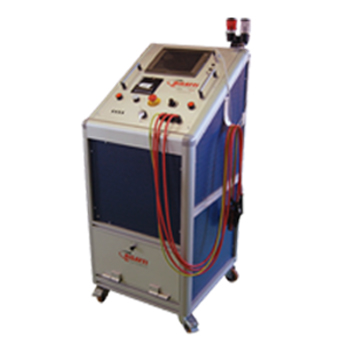

Dielectric strength tester with all adjustable parameters, for elevated voltages and powers.

APPLICATION:

All fields, where this test is requested. Production – Reparations – Technical service – Workshop

MAIN FEATURES:

• Test voltage up to 50 KV (others under request)
• Maximum current up to 1 A (according to the test voltage)
• Timer max 100 sec
• Management through PLC with colour digital visualiser, for all values, on 4″ display with touch-screen
• Voltage application through static relay to avoid extra voltages

OPTIONS:

Among the several options, which allow a wide customisation, we underline:

• WEB SERVER module with DLL for data transmission to external PC
• Motorised voltage converter for current stabilisation and for programmable voltage loading and unloading ramp
• 40-column printer for detected values
• Separation of the active and reactive current component
